BATTENS

Adaptable for a huge range of applications

So Simple. So Versatile.
So many architectural applications.

Aluminum battens offer a strong combination of modern aesthetics and practical performance for exterior and interiors applications. They deliver exceptional design flexibility, allowing architects and builders to create customised looks with a wide range of profiles, spacing options, and finishes. In addition to their visual appeal, aluminum battens enhance building performance by providing weather protection, ventilation, and effective sun shading that can improve overall energy efficiency. Their lightweight construction enables fast, straightforward installation, while their adaptable systems make them ideal for both new builds and retrofit projects. Durable, low-maintenance, and highly versatile, aluminum battens are an excellent solution for contemporary architectural design.

BATTEN SYSTEMS

KNOTWOOD‘s ingenious batten click together system is a 2 part system designed for superior aesthetics, gone are the troubles of fixing through the face and plugging holes with unsightly plastic caps. Knotwood does not rely on small clips to hold the battens either, it runs the whole length for easy attachment and strength.

Knotwood aluminum battens come in a variety of shapes and sizes allowing the designer to create a large architectural statement with minimal construction labor.

Knotwood‘s battens are available in a range of sizes from 2” x 2” (50mm×50mm} up to 8” x 2” (200mm x 50mm) and even larger with the use of a batten joiner. They can be used to create anything from an interior shelf to an exterior fence. They can take a plain façade and instantly convert it to a design statement. Combine these features with the simplest installation requirements possible and it becomes understandable why the battens are one of Knotwood‘s most popular systems.

PROFILES

2" (50mm) Suite

ALL PROFILES ARE: 18 FT 6 Inches | 5.65M (5650MM) IN LENGTH (18 FT 4 INCHES USEABLE) OR 21FT 4 Inches | 6.5M (6500mm) in length (21 FT 2 INCHES Useable)
Stock Items (ST) = standard lead times
Special order (So) = Extended Lead Times - MINIMUM ORDER QUANTITIES MAY APPLY

2 INCH BATTEN BASE (ST)
KEB5050MV3
2” x  2” x 18’6”
50mm x 50mm x 5650mm

2 x 2 BATTEN (ST)
KEB5050FV3
2” x  2” x 18’6”
50mm x 50mm x 5650mm

2 x 4 BATTEN (ST)
KEB10050FV3
2” x  4”  x 18’6”
100mm x 50mm x 5650mm

2 x 6 BATTEN (ST)
KEB15050FV3
2” x  6” x 18’6”
150mm x 50mm x 5650mm

2  x  8 BATTEN (ST)
KEB20050FV3
2” x  8” x 18’6”
200mm x 50mm x 5650mm

DOME BATTEN (SO)
KEB5450DF-R
2 1/8” x 2” x 18’6″
54mm x 50mm x 5650mm

ANGLED BATTEN (SO)
KEB8050AF
2” x 1 3/4” x 18’6″
80mm x 50mm x 5650mm

2 x 6 BATTEN INSERT (SO)
KEBJ150
2” x  6” x 18’6”
50mm x 150mm x 5650mm

ELLIPTICAL BATTEN 6” (SO)
KEB15050FE
2″ x  6″ x 18’6”
50mm x 150mm x 5650mm

ELLIPTICAL BATTEN 8” (SO)
KEB20050FE
2″ x  8″ x 18’6”
50mm x 200mm x 5650mm

45 DEGREE JOINER (SO)
KEBJ45D
2” x 4” x 18’6”
50mm x 100mm x 5650mm

ADJUSTABLE 2″ BATTEN BASE
KEBSB50MADJ (ST)
2” x  4” x 18’6”
200mm x 100mm x 5650mm

BATTEN JOINER (ST)
KEBJ5050
2” x  4” x 18’6”
50mm x 100mm x 5650mm

BATTEN SPLICE (ST)
MTBT26SPLICE
1-3/4  x  1-3/4  x  6″
44mm x 44mm x 152mm

2 x 2  END MOUNT BRACKET
MT2X2BAT (ST)
1-1/2″ x  1-3/4″ x  2″
37mm x 44mm x 51mm

1″ BATTEN END MOUNT CLIP
MT1BATEMC
4″ x 1-3/4″ x 1/2″
102mm x 44mm x 13mm

2″ BATTEN END MOUNT CLIP
MT2BATEMC
1 7/16″ x 1 3/8″ x 4″
37mm x 35mm x 102mm

2" (50mm) heavy duty Suite

ALL PROFILES ARE: 18 FT 6 Inches | 5.65M (5650MM) IN LENGTH (18 FT 4 INCHES USEABLE) OR 21FT 4 Inches | 6.5M (6500mm) in length (21 FT 2 INCHES Useable)
Stock Items (ST) = standard lead times
Special order (So) = Extended Lead Times - MINIMUM ORDER QUANTITIES MAY APPLY

2 INCH BATTEN BASE HD (ST)
KEB5050M
2” x  2” x 18’6”
50mm x 50mm x 5650mm

2 x 2 BATTEN HD (ST)
KEB5050F
2” x  2” x 18’6”
50mm x 50mm x 5650mm

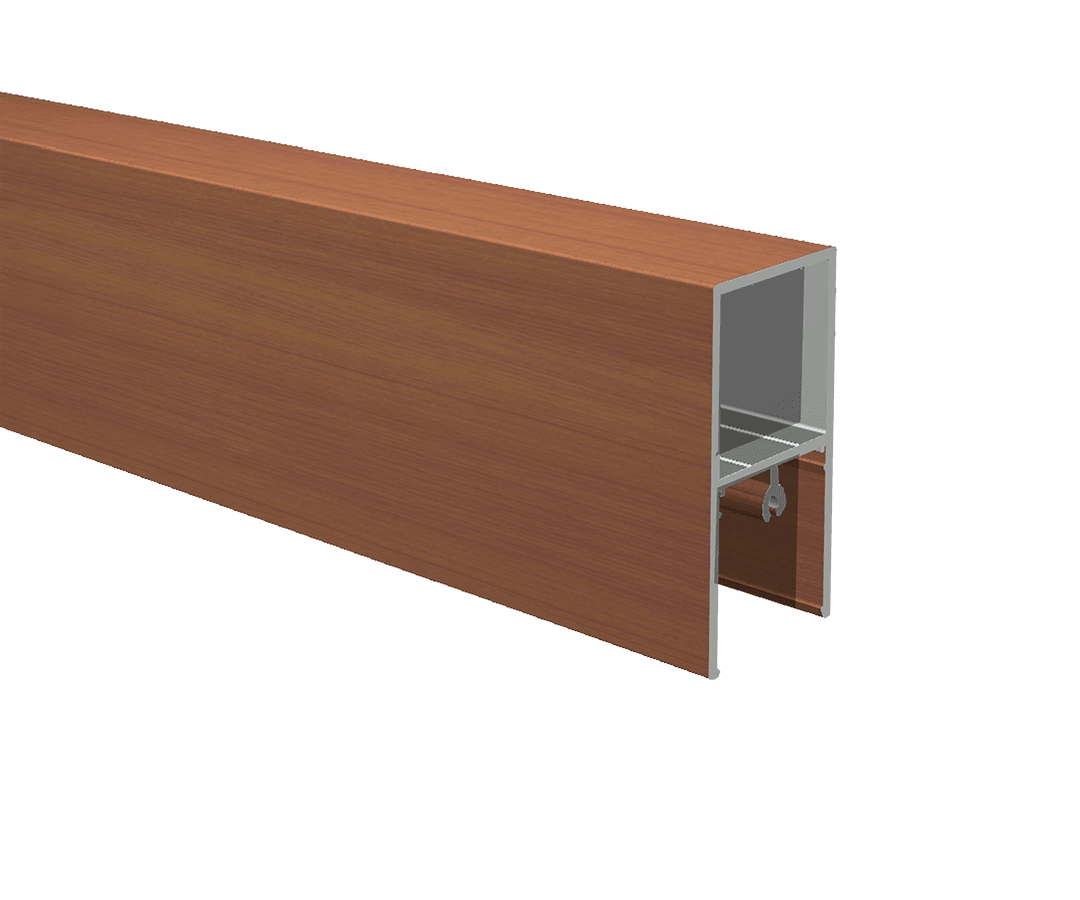

2 x 4 BATTEN HD (ST)
KEB10050F
2” x  4”  x 18’6”
100mm x 50mm x 5650mm

2 x 6 BATTEN HD (ST)
KEB15050F
2” x  6” x 18’6”
150mm x 50mm x 5650mm

2 x 8 BATTEN HD (ST)
KEB20050F
2” x  8” x 18’6”
200mm x 50mm x 5650mm

BATTEN JOINER (ST)
KEBJ5050
2” x  4” x 18’6”
50mm x 100mm x 5650mm

BATTEN SPLICE (ST)
MTBT26SPLICE
1-3/4  x  1-3/4 x 6″
44mm x 44mm x 152mm

2 x 2 END MOUNT BRACKET
MT2X2BAT (ST)
1-1/2″ x  1-3/4″ x 2″
37mm x 44mm x 51mm

BATTEN END  MOUNT CLIP (ST)
MTBAT2575
7/8″ x 2 7/8″
22mm x 72mm

1″ BATTEN END MOUNT CLIP
MT1BATEMC
4″ x 1-3/4″ x 1/2″
102mm x 44mm x 13mm

1" (25mm) Suite

ALL PROFILES ARE: 18 FT 6 Inches | 5.65M (5650MM) IN LENGTH (18 FT 4 INCHES USEABLE) OR 21FT 4 Inches | 6.5M (6500mm) in length (21 FT 2 INCHES Useable)
Stock Items (ST) = standard lead times
Special order (So) = Extended Lead Times - MINIMUM ORDER QUANTITIES MAY APPLY

1 INCH BATTEN BASE (ST)
KEB2525MV2
1” x  1” x 18’6”
25mm x 25mm x 5650mm

1  x  1  BATTEN (ST)
KEB2525FV2
1” x  1” x 18’6”
25mm x 25mm x 5650mm

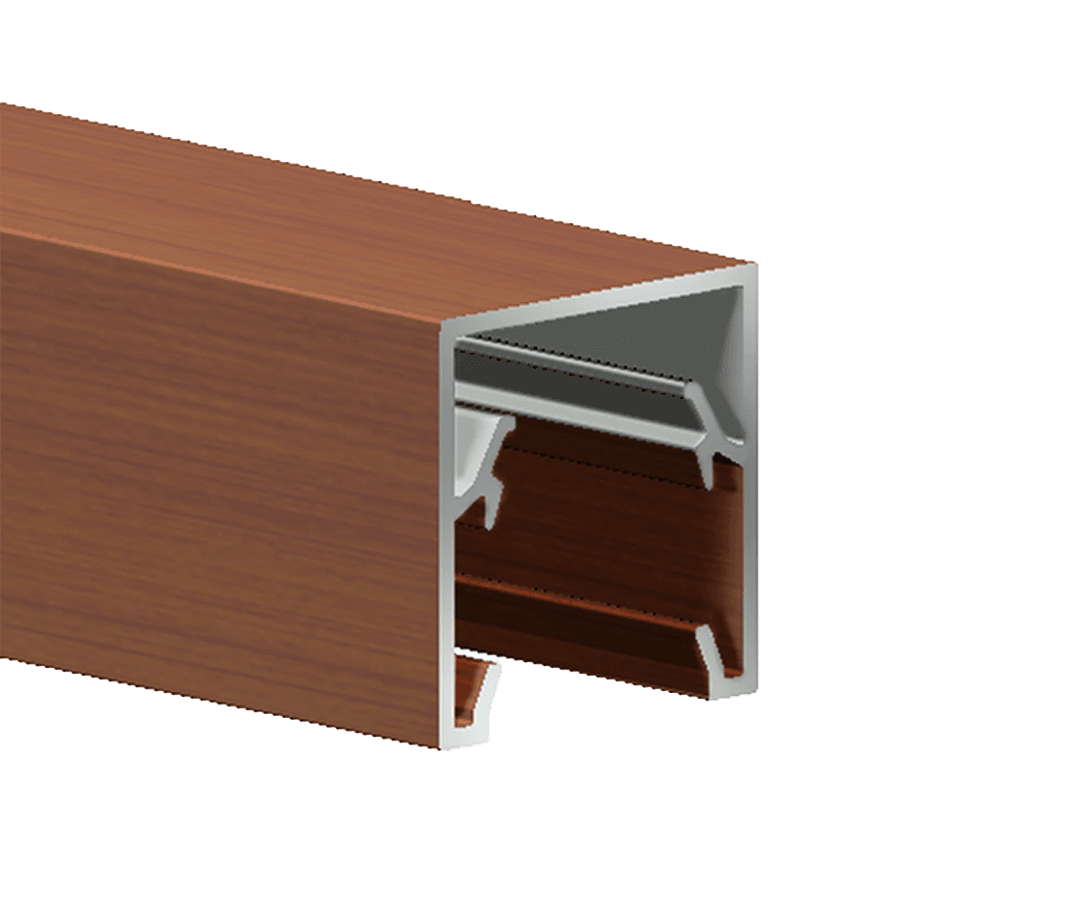

1-1/4  x 1-1/4 BATTEN (ST)
KEB3232F
1 1/4″ x  1 1/4″ x 18′ 6″
32mm x 32mm x 5650mm

1-9/16  x  1-9/16 BATTEN (ST)
KEB4040F
1 9/16″  x  1 9/16″ x 18’6”
40mm x 40mm x 5650mm

1 x 2 BATTEN (ST)
KEB2550FV2
1” x  2” x 18’6”
25mm x 50mm x 5650mm

1 x 3 BATTEN (ST)
KEB7525FV2
1″ x  3″ x 18’6″
25mm x 75mm x 5650mm

1 x 4 BATTEN (ST)
KEB10025FV2
1” x  4” x 18’6”
25mm x 100mm x 5650mm

1 x 6 BATTEN (ST)
KEB15025FV2
1” x  6” x 18’6”
25mm x 150mm x 5650mm

1-1/4 x 2 DOME BATTEN
KEB3250DF (ST)
1-1/4″ x 2″ x 18′-6″
32mm x 50mm x 5650mm

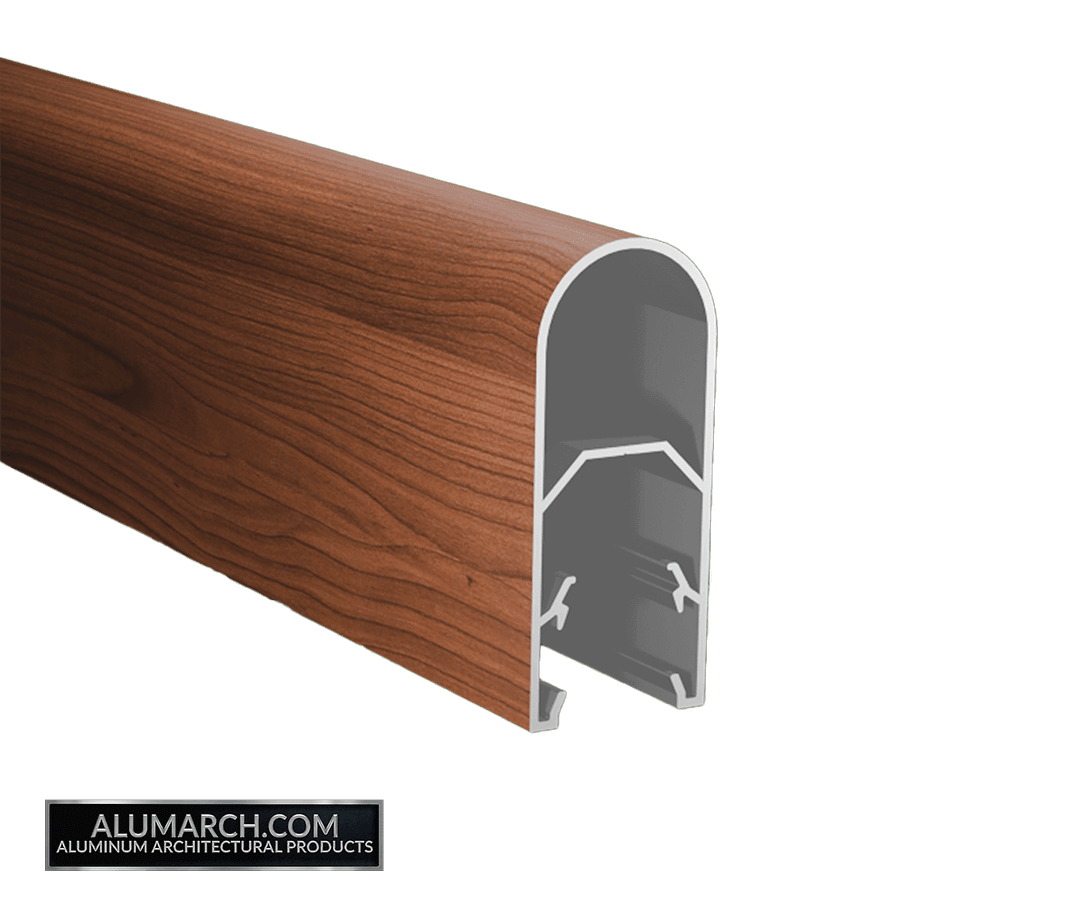

1-1/4 x 3 DOME BATTEN
KEB3275DF (ST)
1-1/4″ x 2-15/16″ x 18′-6″
32mm x 75mm x 5650mm

ADJUSTABLE 1″ BATTEN BASE
KEBSB25MADJ (ST)
1” x  2 3/4” x 18’6”
25mm x 70mm x 5650mm

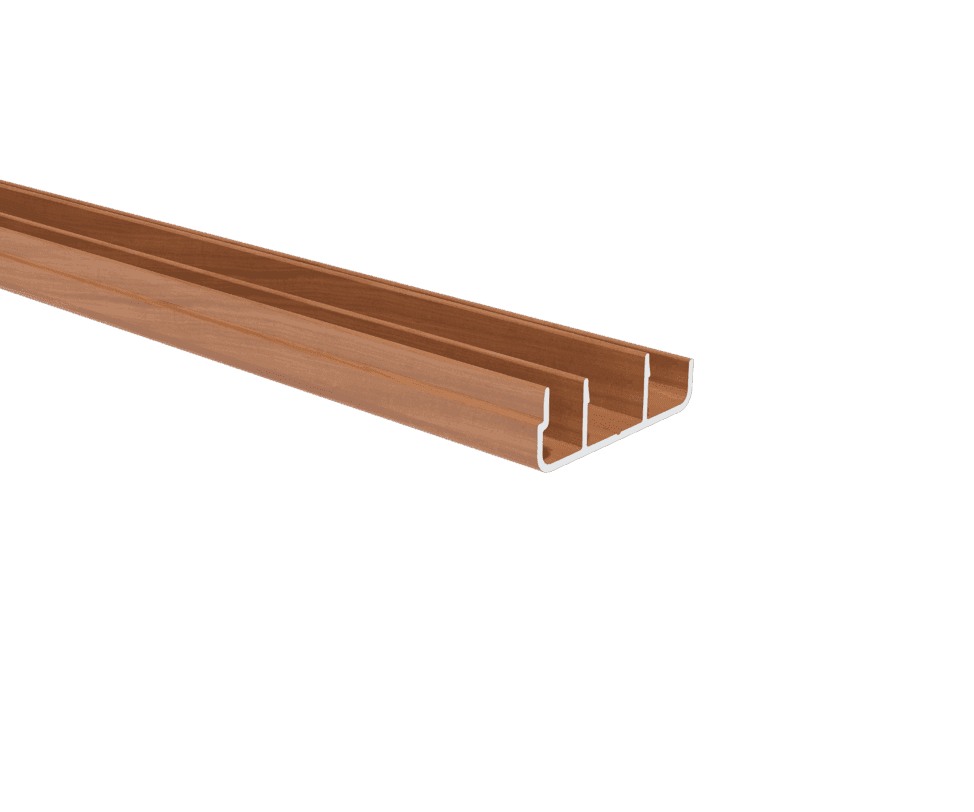

5-1/2 BATTEN MULTI PANEL
KEBP135 (ST)
6-1/8″ x 7/16″ x 18′-6″
155mm x 11mm x 5650mm

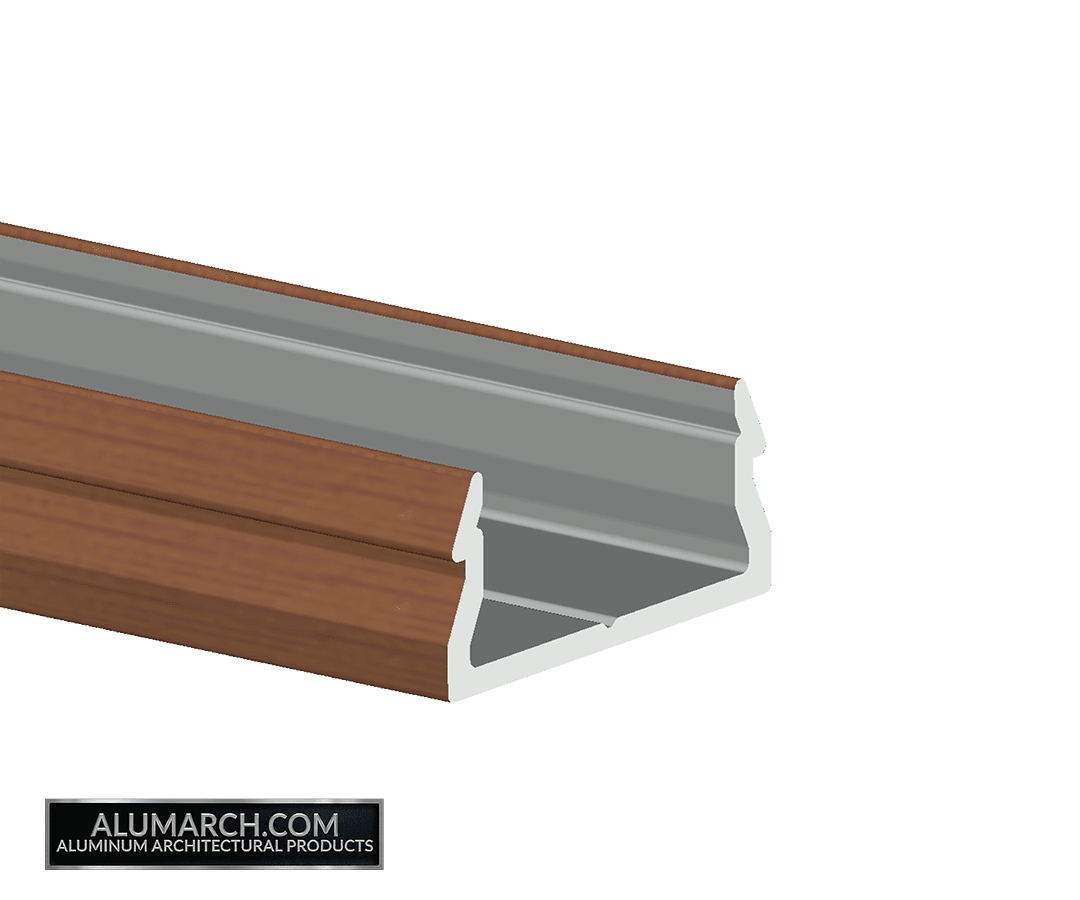

3/8″ x 1″ BATTEN BASE
KEB259  (ST)
3/8″ x 7/8″ x 21′-4″
10mm x 22mm x 6500mm

9/16 x 1-1/4 BATTEN
KEB3214 (ST)
9/16″ x 1 1/4″ x 21′-4″
14mm x 32mm x 6500mm

9/16 x 1-1/4 DOME BATTEN
KEB3214DOME (ST)
9/16″ x 1 1/4″ x 21′-4″
14mm x 32mm x 6500mm

9/16 x 1-1/4 FLUTE BATTEN
KEB3214FLUTE (ST)
9/16″ x 1 1/4″ x 21′-4″
14mm x 32mm x 6500mm

1" (25mm) Wide Suite

ALL PROFILES ARE: 18 FT 6 Inches | 5.65M (5650MM) IN LENGTH (18 FT 4 INCHES USEABLE) OR 21FT 4 Inches | 6.5M (6500mm) in length (21 FT 2 INCHES Useable)
Stock Items (ST) = standard lead times
Special order (So) = Extended Lead Times - MINIMUM ORDER QUANTITIES MAY APPLY

1 INCH BATTEN BASE (ST)
KEB2525MV2
1” x  1” x 18’6”
25mm x 25mm x 5650mm

1 x 2 WIDE BATTEN (SO)
KEB2550WIDE
1″ x  2″ x 18′-6″
25mm x 50mm x 5650mm

1 x 3 WIDE BATTEN (SO)
KEB2575WIDE
1″ x  3″ x 18′-6″
25mm x 75mm x 5650mm

1 x 4 WIDE BATTEN (SO)
KEB25100WIDE
1″ x  4″ x 18′-6″
25mm x 100mm x 5650mm

1 x 6 WIDE BATTEN (SO)
KEB25150WIDE
1″ x  6″ x 18′-6″
25mm x 150mm x 5650mm

flip battens
(Formally self mating)

ALL PROFILES ARE: 18 FT 6 Inches | 5.65M (5650MM) IN LENGTH (18 FT 4 INCHES USEABLE) OR 21FT 4 Inches | 6.5M (6500mm) in length (21 FT 2 INCHES Useable)
Stock Items (ST) = standard lead times
Special order (So) = Extended Lead Times - MINIMUM ORDER QUANTITIES MAY APPLY

2″ x 4″ FLIP BATTEN (ST)
KEF10050
2” x 4” x 18’6”
50mm x 100mm x 5650mm

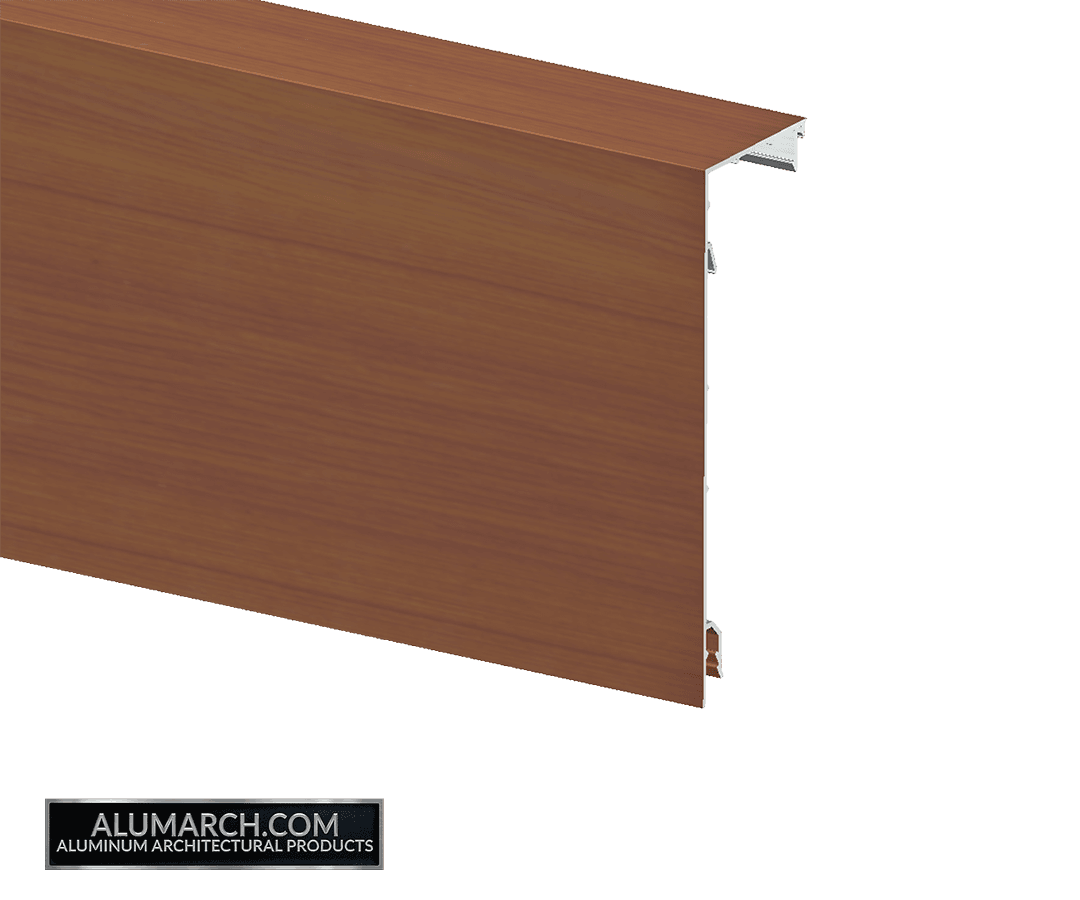

2″ x 6″ FLIP BATTEN (ST)
KEF15050
2” x 6” x 18’6”
50mm x 150mm x 5650mm

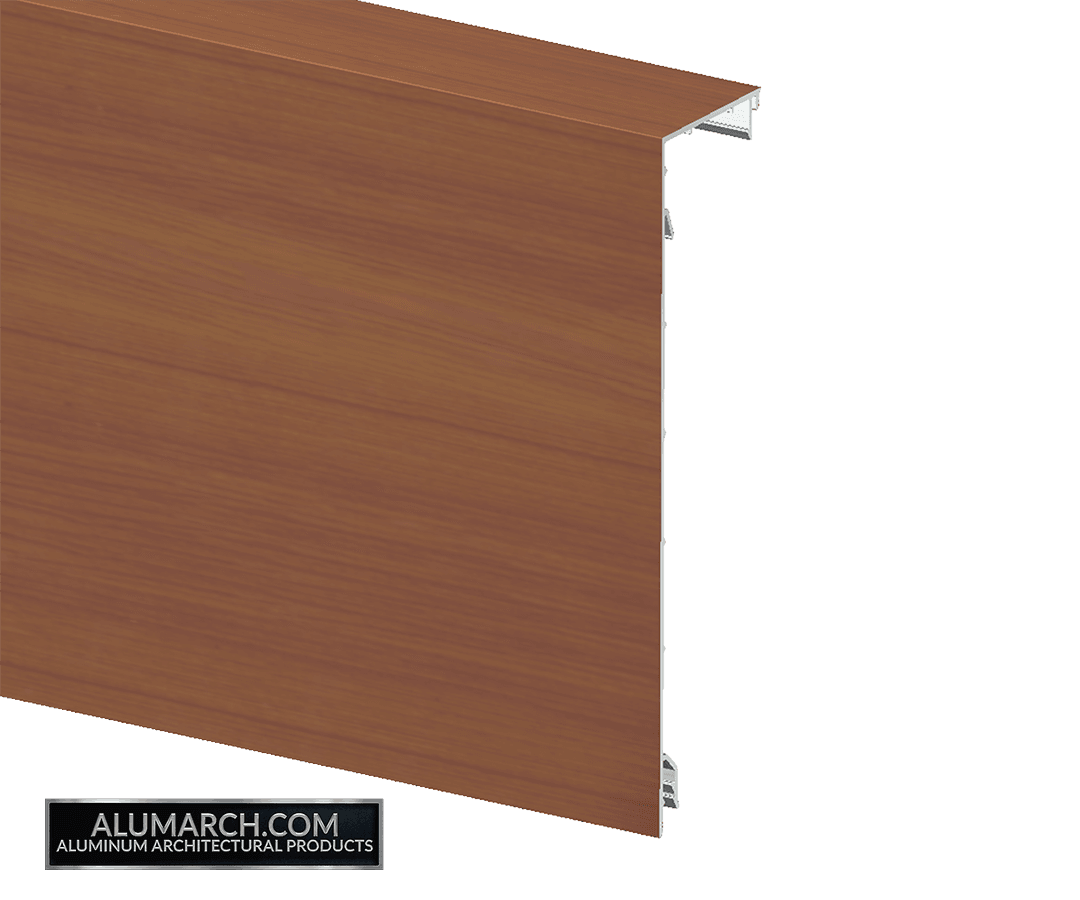

2″ x 8″ FLIP BATTEN (ST)
KEF20050
2” x 8” x 18’6”
50mm x 200mm x 5650mm

4” x 6″ FLIP BATTEN (ST)
KEF150100 / KEFCB100150
4” x 6” x 18’6”
100mm x 150mm x 5650mm

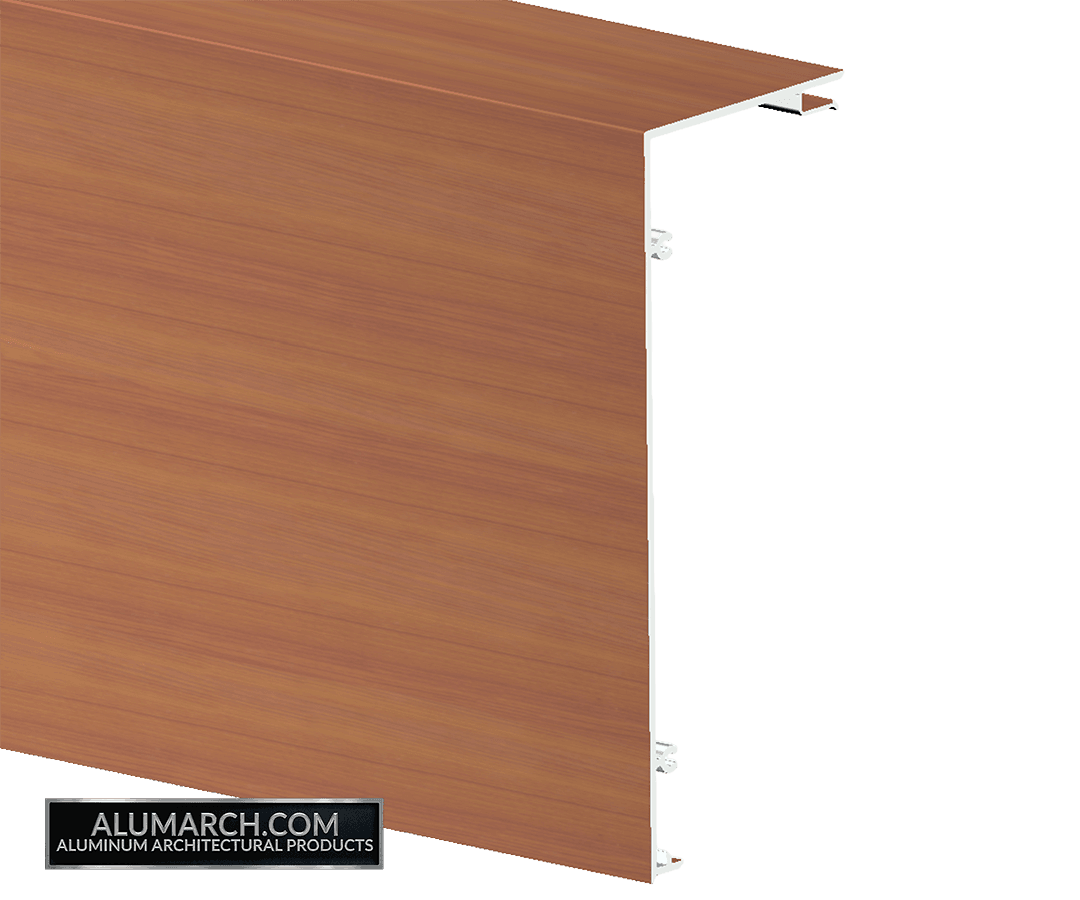

4” x 10″ FLIP BATTEN (SO)
KEF250100 / KESM250100
4” x 10” x 18’6”
100mm x 250mm x 5650mm

1 ½” FLIP BATTEN (ST)
KEF3816 / KESM3816
1 1/2” x 5/8” x 18’6”
38mm x 16mm x 5650mm

2 ½” FLIP BATTEN (ST)
KEF6516 / KESM6516
2 1/2” x 5/8” x 18’6”
65mm x 16mm x 5650mm

4” FLIP BATTEN (ST)
KEF10016 / KESM10016
4” x 5/8” x 18’6”
100mm x 16mm x 5650mm

6” FLIP BATTEN (ST)
KEF15016 / KESM15016
6” x 5/8” x 18’6”
150mm x 16mm x 5650mm

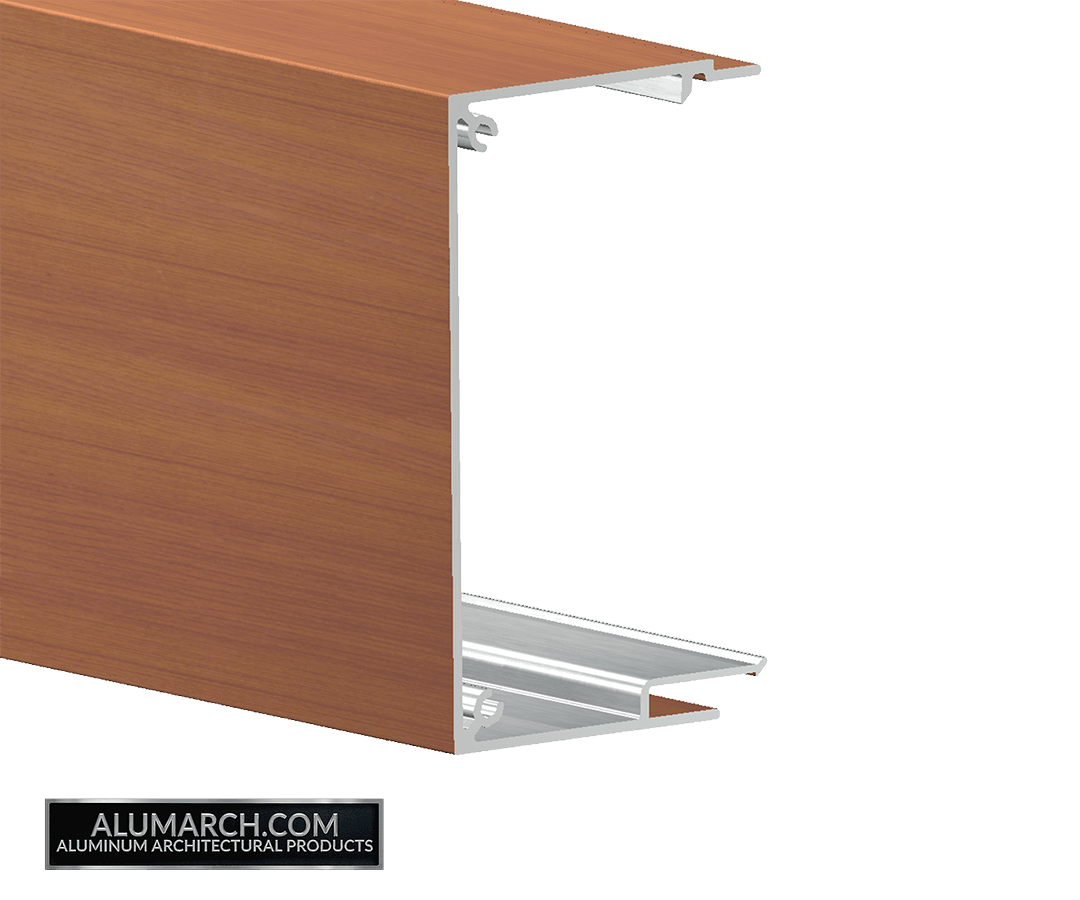

6″ x 6″ FLIP BATTEN (SO)
KEF150150 / KESM150150
6” x 6” x 18’6″
150mm x 150mm x 5650mm

1″ x 8″ FLIP BATTEN (SO)
KEF15050 / KESM20025
2” x 6” x 18’6”
50mm x 150mm x 5650mm

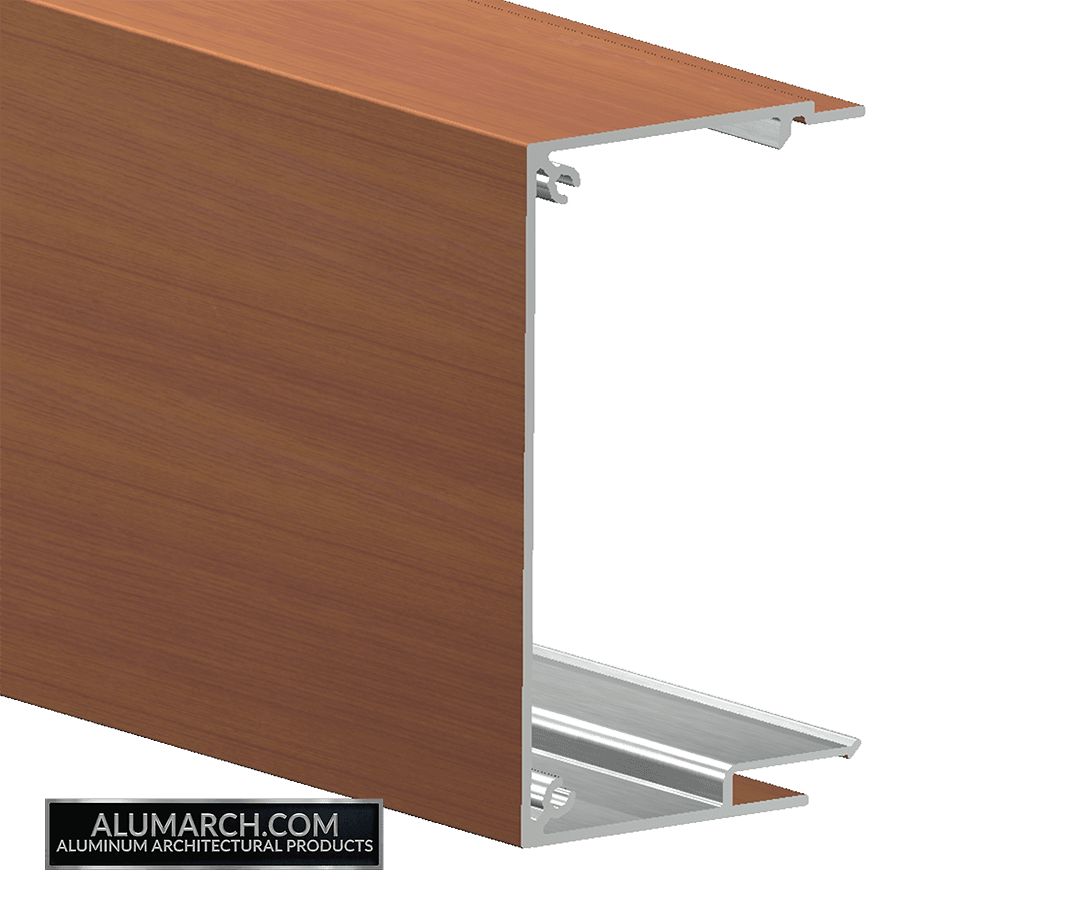

8″ x 8″ FLIP BATTEN (ST)
KEF200200 / KESM200200
8” x 8” x 18’6″
200mm x 200mm x 5650mm

end caps

ALL End Caps Are Made Of Aluminum
End caps match color or woodgrain of your batten order

1 x 1  End Cap
KAEC2525-C
1” x  1”
25mm x 25mm

1-1/4 x 1-1/4 End Cap
KAEC3232-C
1 1/4″  x  1 1/4″
32mm x 32mm

1-9/16 x 1-9/16 End Cap
KAEC4040-C
1 9/16″  x  1 9/16″
40mm x 40mm

1 x 3 End Cap
KAEC7525-C
1″ x  3″
25mm x 75mm

1 x 4 End Cap
KAEC10025-C
1″ x  4″
25mm x 100mm

1 x 6  End Cap
KAEC15025-C
1″ x  6″
25mm x 150mm

2 x 2  End Cap
KAEC5050-C
2″  x  2″
50mm x 50mm

2 x 4  End Cap
KAEC10050-C
2″ x  4″
50mm x 100mm

2 x 6  End Cap
KAEC15050-C
2″ x  6″
50mm x 150mm

2 x 8  End Cap
KAEC20050-C
2″ x  8″
50mm x 200mm

2 x 2  BATTEN CAP (ST)
KAEC5050-R
2” x  2”
50mm x 50mm

2  x 4  BATTEN CAP (ST)
KAEC10050-R
2” x  4”
100mm x 50mm

2 x 6  BATTEN CAP (ST)
KAEC15050-R
2” x  6″
150mm x 50mm

2 x 8  BATTEN CAP (ST)
KAEC20050-R
2” x  8”
200mm x 50mm

1 1/2” FLIP BATTEN CAP (SO)
KAEC3816-R
1 1/2” x 5/8”
38mm x 16mm

2 1/2” FLIP BATTEN CAP (SO)
KAEC6516-R
2 1/2” x 5/8”
65mm x 16mm

4” FLIP BATTEN CAP (SO)
KAEC10016-R
4” x 5/8”
100mm x 16mm

6” FLIP BATTEN CAP (ST)
KAEC15016-R
6” x 5/8”
150mm x 16mm

BATTEN ASSEMBLY

Batten Assembly - 2" Suite (50mm)
Batten Assembly - 2" Suite (50mm)
Batten Assembly - 2" HD Suite (50mm)
Batten Assembly - 2" HD Suite (50mm)
Batten Assembly - 1" Standard Suite (25mm)
Batten Assembly - 1" Standard Suite (25mm)
Batten Assembly - 1" Slim Suite (25mm)
Batten Assembly - 1" Slim Suite (25mm)
Batten Assembly - 1" Wide Suite (25mm)
Batten Assembly - 1" Wide Suite (25mm)
Batten Assembly - 2" Batten Joiners (50mm)
Batten Assembly - 2" Batten Joiners (50mm)

HELPING bright idea's come to life.

The ALUMARCH Team have unparalleled knowledge of all things KNOTWOOD and can help you bring your visons to life.
