Cladding
A Modern take on the traditional
“Exceeds Miami Dade Wind Tests”
In recent years cladding has turned from classic to contemporary by using new materials and new applications. In keeping with progression, KNOTWOOD’s cladding system has been engineered to be versatile, competitively priced, easy and quick to install, without losing its timeless traditional appeal. It has a superior resistance to weathering over wood, steel and composites and boasts minimal maintenance.
Select one of the beautiful Woodgrain colors for a modern play on the traditional or choose from our solid color range for a more monochromatic look.
CLADDiNG SYSTEMS
KNOTWOOD’s cladding system is made up of a few simple components. It can be installed horizontally, vertically or on a diagonal. Unlike wood, PVC and composites, KNOTWOOD stays looking new for decades. KNOTWOOD could make it thinner, use cheaper paint, use cheaper aluminum, use cheaper manufacturing processes – THEY DON’T.
The cladding system is based on a unique sure proof interlocking system and is enhanced with starters, corners and caps to provide a sleek and quick install. All cladding extrusions come in 18’6” (5650mm) lengths allowing for a cut on site application and ensures efficient coverage of large areas.
- 4” CLADDING/SOFFIT
- 6” CLADDING/SOFFIT

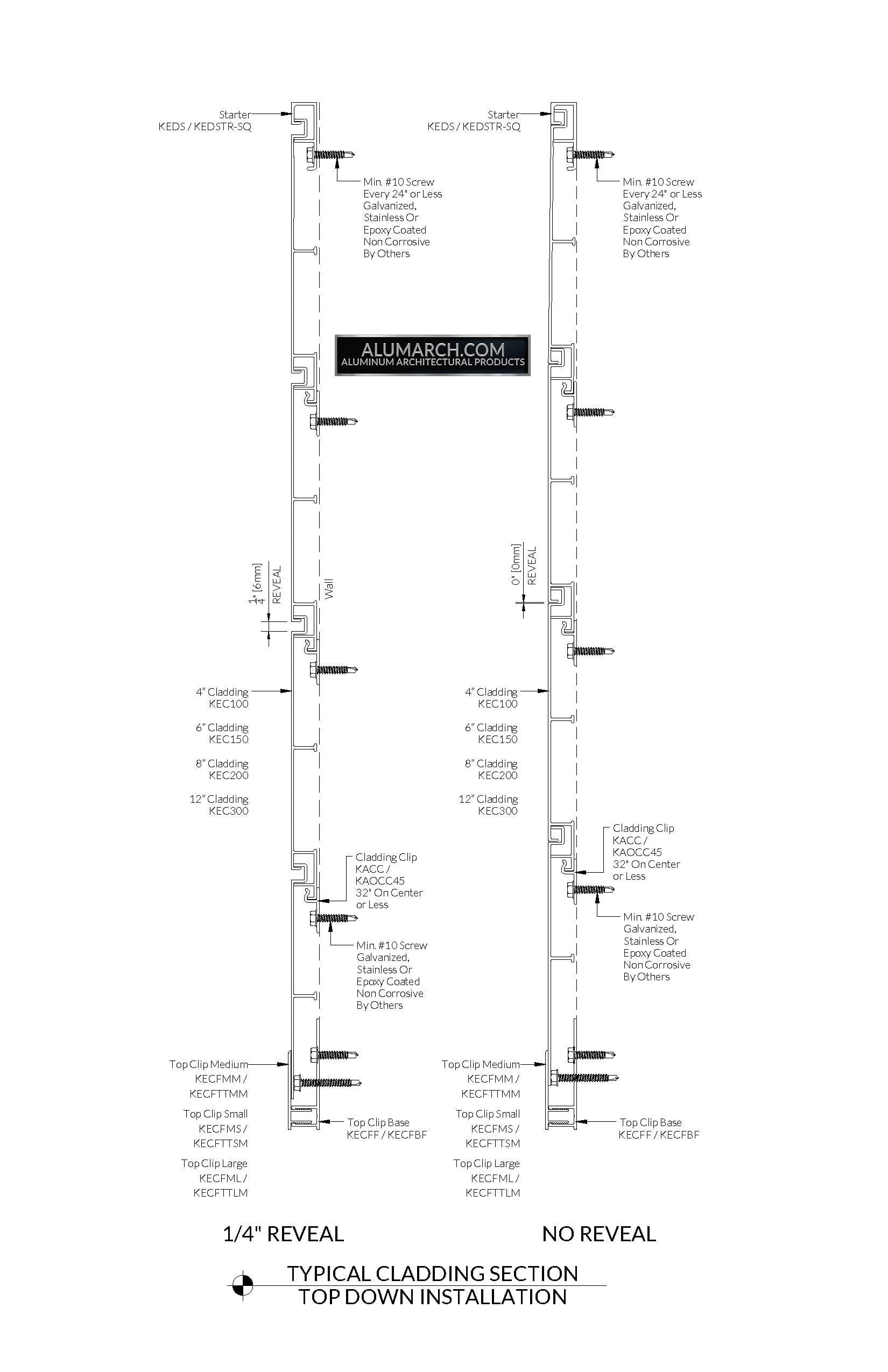

- TOP DOWN OR BOTTOM UP INSTALLATION
- HORIZONTAL OR VERTICAL INSTALL
- HVHZ RATED
- 18’6” LENGTHS
PROFILES
Stock ITEMS (ST)
ALL PROFILES ARE: 18 FT 6 Inches | 5.65M (5650MM) IN LENGTH (18 FT 4 INCHES USEABLE)
Special Order ITEMS (SO)
Extended Lead Times - MINIMUM ORDER QUANTITIES MAY APPLY
ALL PROFILES ARE: 18 FT 6 Inches | 5.65M (5650MM) IN LENGTH (18 FT 4 INCHES USEABLE)
ALL PROFILES ARE: 18 FT 6 Inches | 5.65M (5650MM) IN LENGTH (18 FT 4 INCHES USEABLE)

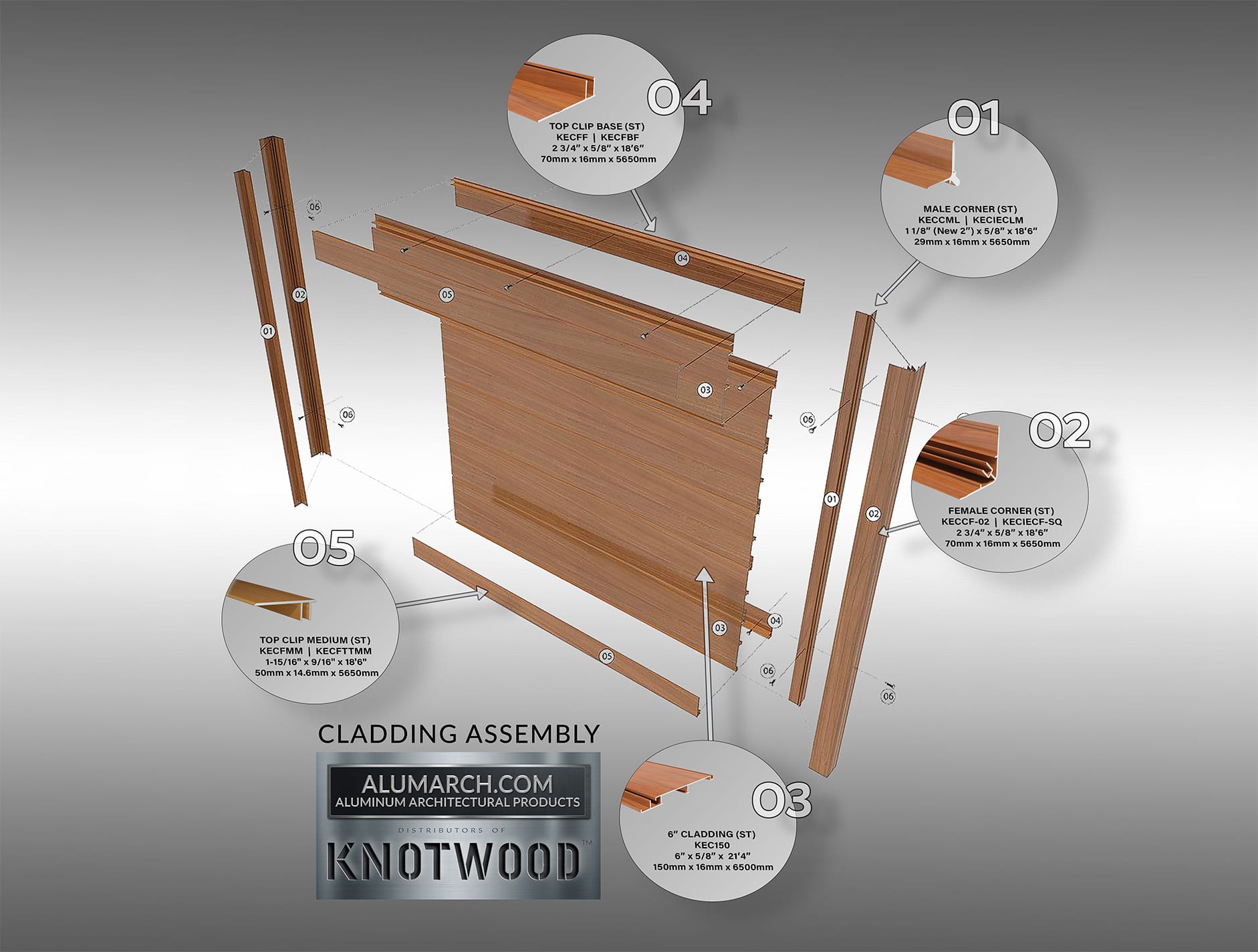

CLADDING ASSEMBLY

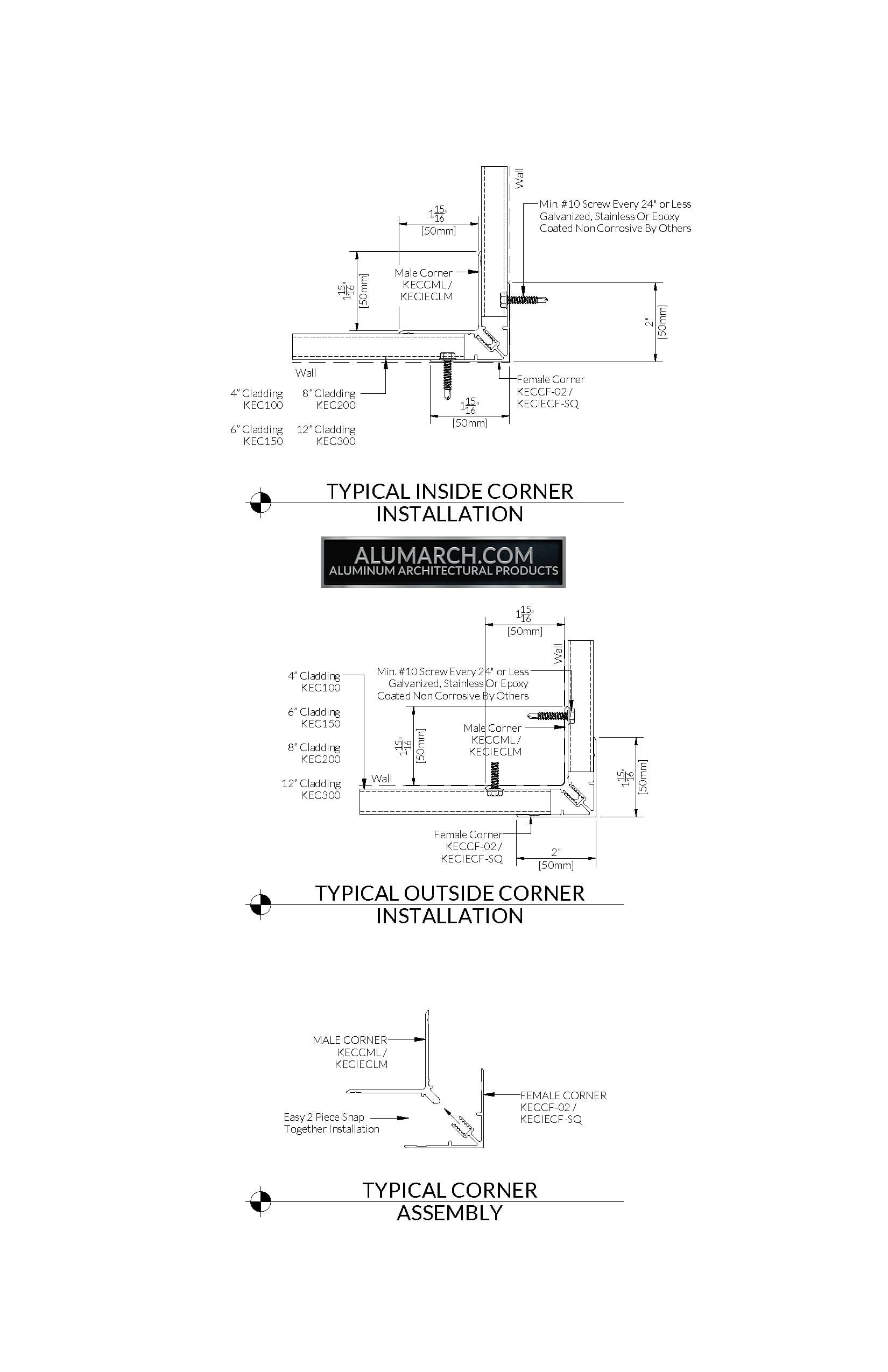

MALE CORNER (ST)
KECIECLM
1 1/8” (New 2”) x 5/8” x 18’6”
29mm x 16mm x 5650mm
FEMALE CORNER (ST)
KECIECF
2 3/4” x 5/8” x 18’6”
70mm x 16mm x 5650mm
4” CLADDING (SO)
KEC100
4” x 5/8” x 18’6”
100mm x 16mm x 5650mm
6” CLADDING (ST)
KEC150
6” x 5/8” x 18’6”
150mm x 16mm x 5650mm
8” CLADDING (SO)
KEC200
8″ x 5/8″ x 18’6″
200mm x 16mm x 5650mm

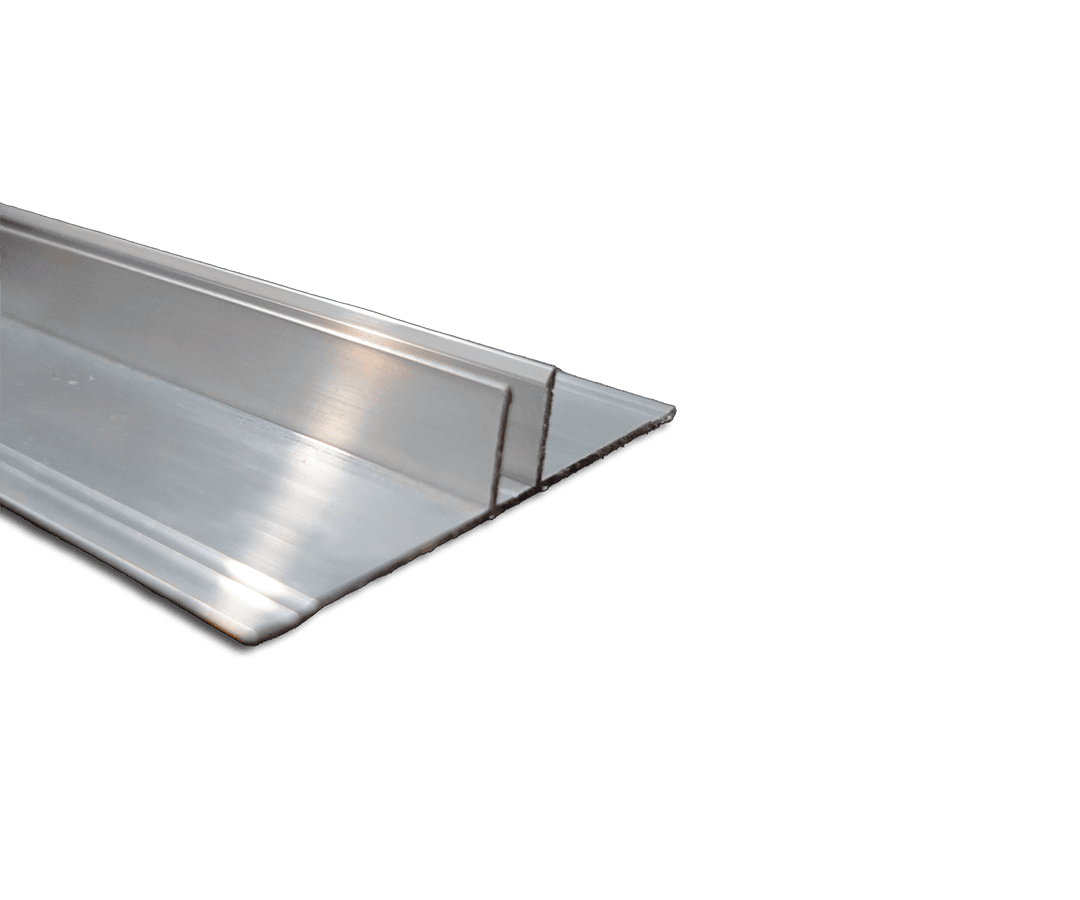

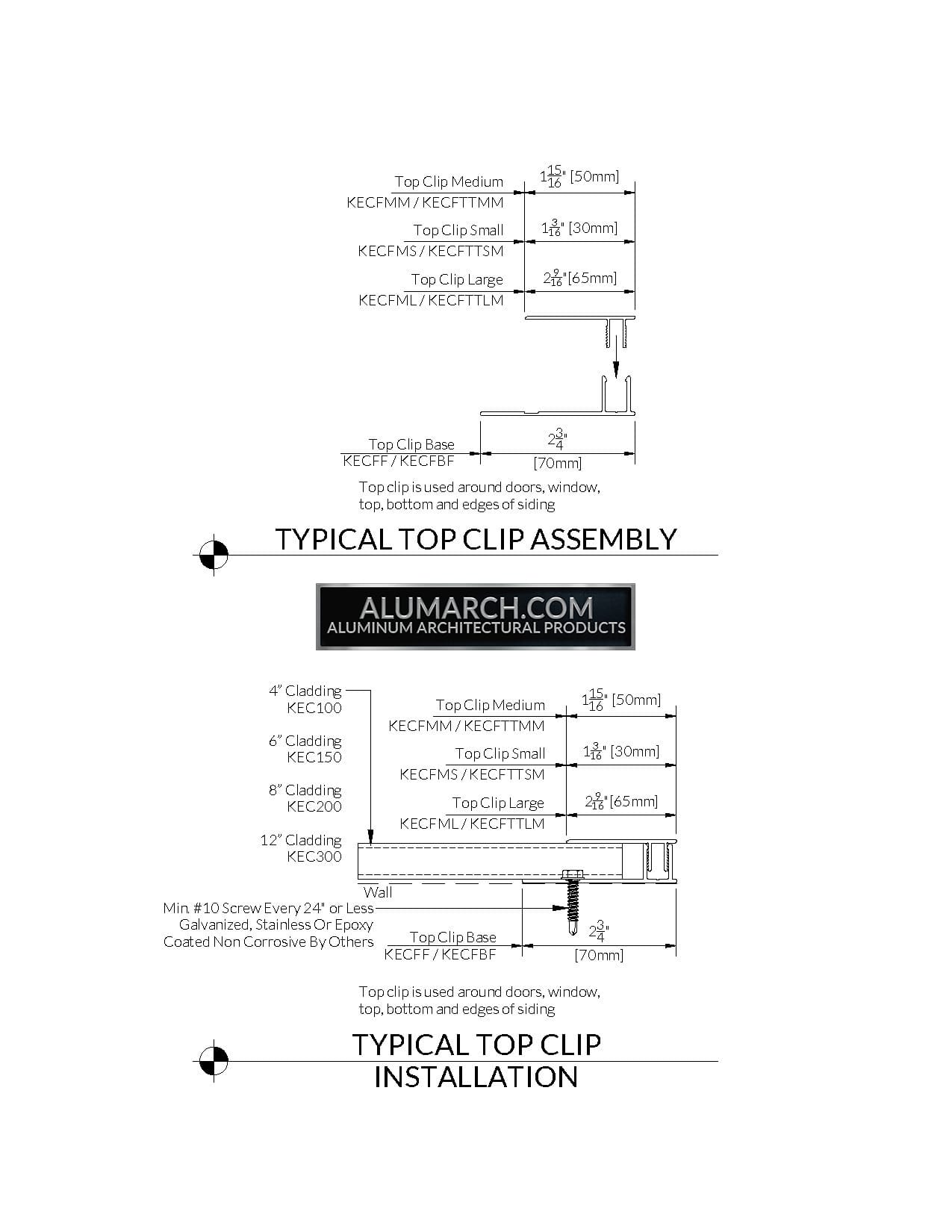

TOP CLIP BASE (ST)
KECFBF
2 3/4” x 5/8” x 18’6”
70mm x 16mm x 5650mm
TOP CLIP LARGE (ST)
KECFTTLM
2 9/16” x 5/8” x 18’6”
65mm x 16mm x 5650mm

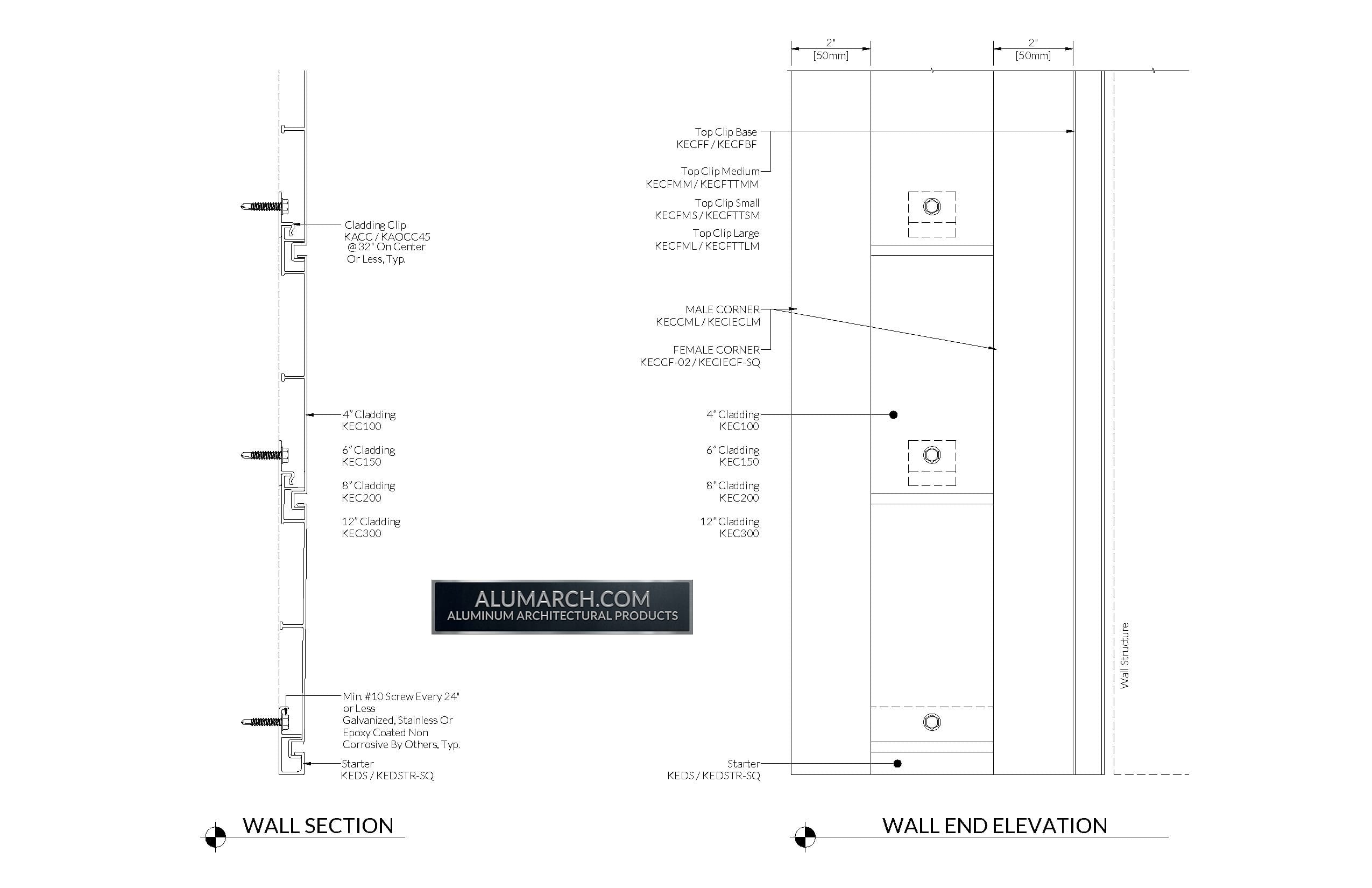

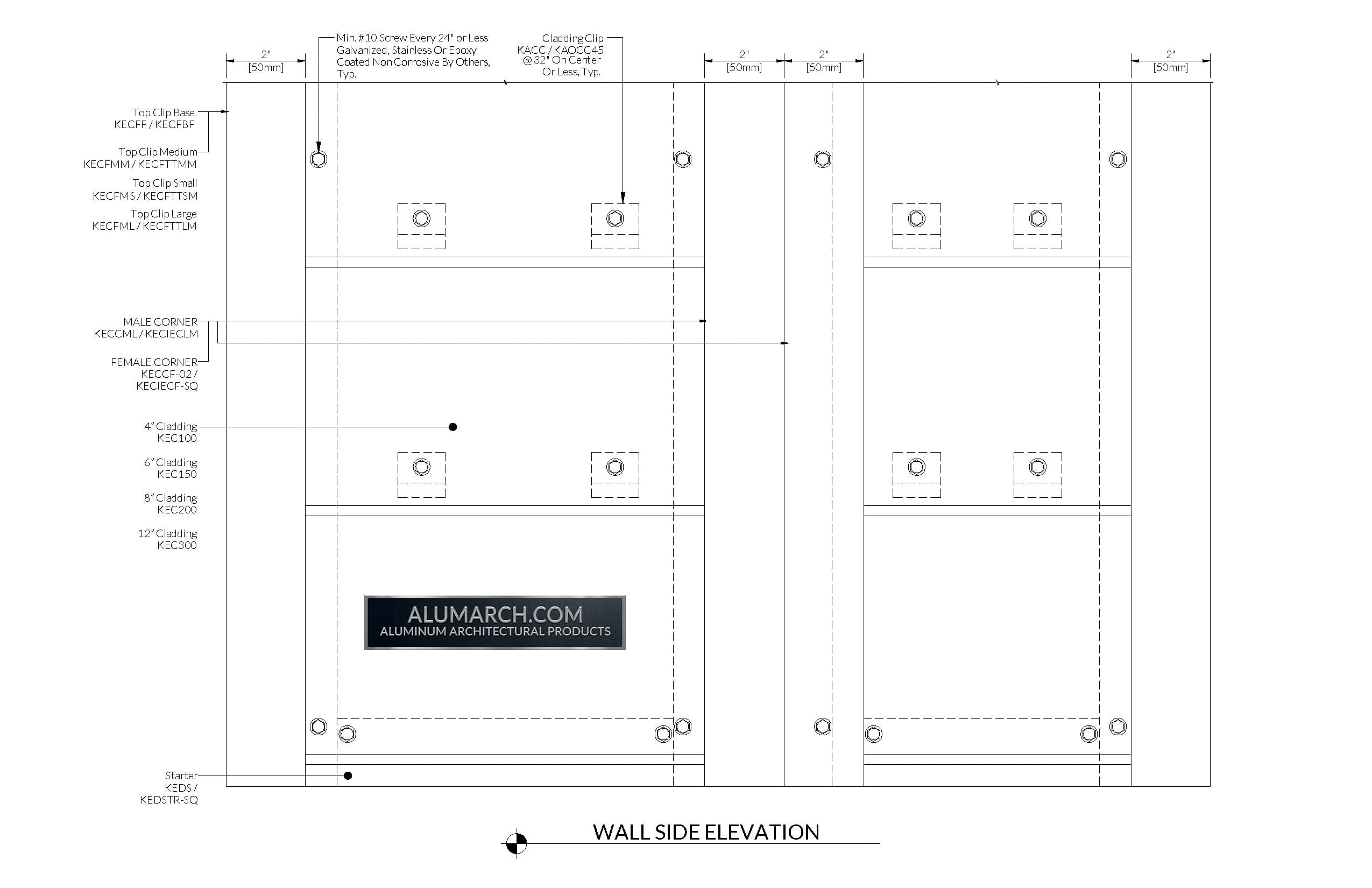

STANDARD SHOP DRAWINGS
Fulbourn hospital, camberidge U.K.
versatile
& customisable.
Flush mount battens conceal the garage door and blend in seamlessly with the surrounding facade reinforcing the geometry with the appearance of linear lines and invisibility. Choose from various batten shapes and sizes which can be used horizontally, vertically or diagonally.
A Variety of slat shapes and sizes can add the illusion of width and height while providing a sense of visual unity and ventilation.
Please note that KNOTWOOD do not supply the garage doors or any kits. The video shows how you can customize their product using your imagination.
Garage Doors NOT supplied.
The KNOTWOOD product is attached to the existing garage door.
